Enterprise PSU replacement?
« on: 2021.November.30. 23:30:21 »
Hi friends, it sounds really strange, but now I am without any EP PSU. I don't know if my old one was broken, but I don't have anymore. Now I wonder how I can replace it. Is it possible to use a combination of switching power supplys? But how to make the connector?
Can't wait to power up my EP again (after nearly 2 years) but this is really a little bit crazy.

Offline Tuby128

  • EP addict
  • *
  • Posts: 1448
  • Country: hu
Re: Enterprise PSU replacement?
« Reply #1 on: 2021.December.01. 01:46:57 »
Hallo!

 Sie meinen den schwarze Trafo haben Sie nicht mehr?
 Es ist möglich ein 12V netzteil zu benutzen. Muss man aber betrachten, dass bei der DC connector von Enterprise die plus und minus vertauscht ist, und kein protection Schaltung eingebaut ist.
 Praktisch man muss im Loch von dc stecker minus und aussen plus 12V messen können.
 Wenn das nicht der fall ist (das ist höchstwahrscheinlich), dann entweder neue DC-Stecker löten, oder kabel schneiden und die ader tauschen.

 Enterprise regelt der DC input auf 5V herunter. Die Unterschied wird durch die 7805 auf dem kühlkörper als Hitze umgewndelt. Also weniger Hitze wird erzeugt, wenn man statt 12V ehet ein 9V Netzteil benutzt. Nur diese Typ ist selten zu kaufen, obwohl im ebay.de gibt es alles mögliche, sogar in deutsche Lagerbestand.

Offline Tuby128

  • EP addict
  • *
  • Posts: 1448
  • Country: hu
Re: Enterprise PSU replacement?
« Reply #2 on: 2021.December.01. 01:56:41 »
Diese 9V Netzteil wäre zB eine gute start mit 2A belastbarkeit:
https://www.ebay.de/itm/124924095175

Der Steckergrösse (Innen- und Aussendurchmesser) muss ich noch prüfen, erst morgen kann ich meine Stecker abmessen.

Offline Tuby128

  • EP addict
  • *
  • Posts: 1448
  • Country: hu
Re: Enterprise PSU replacement?
« Reply #3 on: 2021.December.01. 14:00:01 »
Aussendurchmesser 5,5mm
Innendurchmesser 2,1mm

Offline pear

  • EP lover
  • *
  • Posts: 825
  • Country: pl
  • Z80 only
    • Támogató Támogató
Re: Enterprise PSU replacement?
« Reply #4 on: 2021.December.01. 15:44:17 »
If you have one, you can use the ZX Spectrum +2 (gray model) power supply.

Offline Tuby128

  • EP addict
  • *
  • Posts: 1448
  • Country: hu
Re: Enterprise PSU replacement?
« Reply #5 on: 2021.December.01. 16:28:09 »
I just tested my first post with google translate. The quality of the translation to english was very good. I tried to translate it to hungarian as well , and I was surprised how undersandable the sentences were. That was not the case about 5-10 years ago, especially with hungarian.

Offline Zozosoft

  • Global Moderator
  • EP addict
  • *
  • Posts: 14721
  • Country: hu
    • http://enterprise.iko.hu/
Re: Enterprise PSU replacement?
« Reply #6 on: 2021.December.01. 19:39:14 »
Hi friends, it sounds really strange, but now I am without any EP PSU. I don't know if my old one was broken, but I don't have anymore

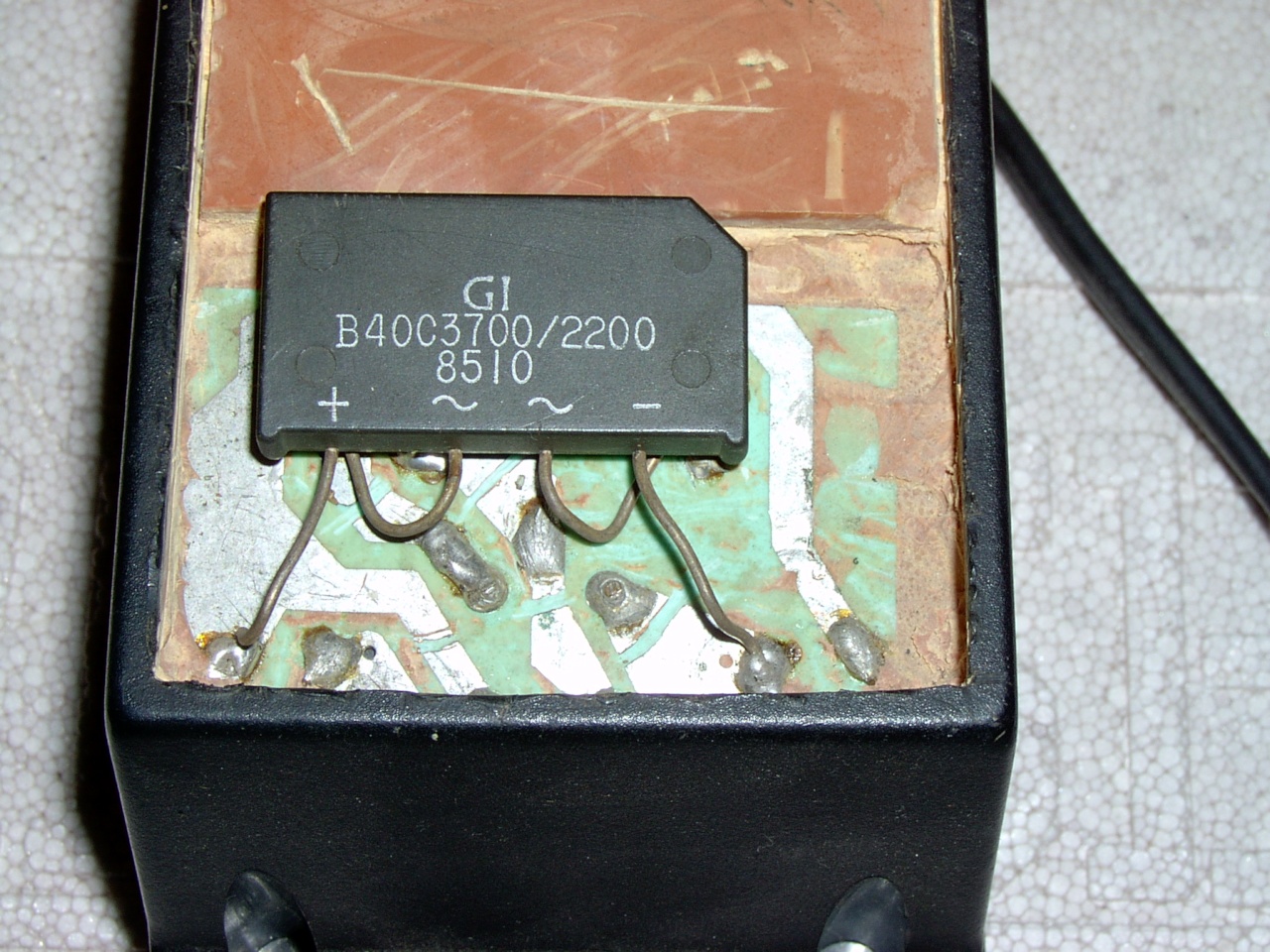

You send to me with Edoz's machine your faulty PSU. I tested it, and it is really dead. It is only can be repaired with a dirty hack. Then you say, don't need it back, you will buy modern replacement. At this time we selected one type from German webshops.
9V, 2A or more, 5.5x2.1mm plug. Polarity are very important: positive at outside! (Todays this is often called as reverse polarity.)

Offline gflorez

  • EP addict
  • *
  • Posts: 3607
  • Country: es
    • Támogató Támogató
Re: Enterprise PSU replacement?
« Reply #7 on: 2021.December.02. 10:57:03 »
He has ordered this one.

Yes, 5,5mm outer ring +5v, 2,5mm central hole GND.

Offline Prodatron

  • EP user
  • *
  • Posts: 256
  • Country: de
  • Back on the Z80
    • http://www.symbos.de
Re: Enterprise PSU replacement?
« Reply #8 on: 2021.December.02. 13:38:14 »
Thanks a lot for your help!
Yes, your text is very good to read, Tuby! :)

I completely forgot about it, that I gave it to Edo/Zozo years ago :mrgreen:

Two new PSUs arrived today, one is the same like Tuby suggested, the other one is a multi-voltage PSU with up to 3A and switchable polarity:

https://www.amazon.de/gp/product/B0832QVZ47/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1

Both are working fine, my Enterprise is alive again, thanks! :)

Offline geco

  • EP addict
  • *
  • Posts: 7082
  • Country: hu
    • Támogató Támogató
Re: Enterprise PSU replacement?
« Reply #9 on: 2021.December.02. 13:49:48 »
cool :)
